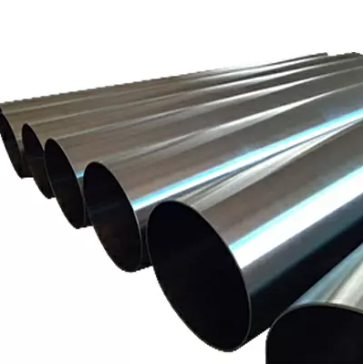

904L Stainless steel pipe

分享
微信
新浪微博
QQ
QQ空间
豆瓣网
百度贴吧
Outter Diameter (OD)：3-1220mm
Thickness：0.5-50mm
Length：6000mm 5800mm 12000mm or Customized
Grade(ASTM UNS)：201 202 301 304 304L 321 316 316L 317L 347H 309S 310S 904L S32205 2507 254SMOS 32760 253MA N08926 etc.
Grade (EN)：1.4301, 1.4307, 1.4541, 1.4401, 1.4404 ,1.4571, 1.4438, 1.4539, 1.4547, 1.4529, 1.4562, 1.4410, 1.4878, 1.4845, 1.4828, 1.4876, 2.4858, 2.4819
Technique：Cold Drawn or Hot
Certification：ISO, SGS, BV
Standard：ASTM AISI DIN JIS GB EN
Contact us
产品详情

SPECICATION


Product NameStainless steel pipe
TypeSeamless or Welded
Material (ASTM)201 202 304 304L 309s 310s   316 316L 316TI 317L 321 904L S32205
Material (DIN)1.4301 1.4306 1.4541 1.4401 1.4404 1.4571 1.4539 1.44621.4410 1.4833 1.4845
Outter Diameter (OD)3-1220mm
Thickness0.5-50mm
Length6000mm 5800mm 12000mm or Customized
Surface FinishedNo.1 No.3 No.4 HL 2B BA 4K 8K 1D 2D
End/EdgePlain   Mill
TechniqueCold Drawn or Hot
StandardASTM AISI DIN JIS GB EN
CertificateISO SGS
PackagePlywood Case/Pallet or Other Export Package Suitable for Long Distance Shipping


chemical composition:
carbon （C） ：manganese （Mn）：nickel（ Ni）：silicon （Si）：phosphorus（ P） ：sulfur （ S） ：chromium（ Cr）：copper (Cu)：molybdenum (Mo)：
≤0.02≤2.0023.0～28.0≤1.0≤0.045≤0.03519.0～23.01.0～2.04.0～5.0

Mechanical behavior:
tensile strength:σb≥490Mpa
Yield Strength:σb≥215Mpa
Elongation rate:δ≥35%
hardness:70-90（HRB）


Physical properties:
density:8.24g/cm3，
Melting point:1300-1390 ℃，
magnetic:without
Heat treatment:Keep temperature between 1100-1150℃ for 1-2 hours, fast air cooling or water cooling
Executive standard：ASTM A240/ASME SA-240、ASTM A276、ASTM A182/ASME SA-182、ASTM A312/ASMES A312、ASTM B625/ASME B625、ASTM B673/ASME B673

904L super austenitic stainless steel is a low-carbon, high-nickel, molybdenum austenitic stainless and acid-resistant steel. It has good activation-passivation transformation ability, excellent corrosion resistance, good corrosion resistance in non-oxidizing acids such as sulfuric acid, acetic acid, formic acid, and phosphoric acid, and good corrosion resistance in neutral chloride-containing media It has good pitting corrosion resistance and good resistance to crevice corrosion and stress corrosion. It is suitable for sulfuric acid of various concentrations below 70℃. It is resistant to acetic acid of any concentration and temperature under normal pressure, and the corrosion resistance in the mixed acid of formic acid and acetic acid is also very good.



PRODUCT SURFACE





PRODUCT DETAILS






WORKSHOP SHOW




PACKAGING
